Restoring Form and Function: A Complex Upper Flexible Denture and Lower Titanium Framework Case Study
In modern restorative dentistry, rehabilitating a complex partially edentulous patient requires a high level of biomechanical engineering. Today, clinicians demand lightweight dental restorations that combine excellent structural rigidity with natural, metal-free aesthetics. Utilizing a medical-grade titanium framework has become the gold standard for lower jaw stabilization due to its superior biocompatibility. According to material guidelines from the American College of Prosthodontists (ACP), selecting bio-compatible metals drastically reduces mucosal irritation while preserving remaining tooth structures.
Recently, our elite technical team at 3Dova successfully executed a highly precise dual-arch rehabilitation case. Therefore, we want to present this clinical breakdown to showcase how our advanced dental laboratory processing achieves flawless seating with minimal chairside modifications.
The Patient Prescription Profile
- Upper Arch: Flexible Partial Denture replacing missing teeth 16, 17, and 27.
- Upper Retention: Aesthetic, tissue-colored flexible clasps positioned on teeth 15 and 26.
- Lower Arch: Partial Titanium Framework denture replacing missing teeth 33, 34, 35, 43, 44, and 45.
- Lower Retention: Direct supportive metal clasps engaging teeth 33, 37, 43, and 47.
- Lower Base Material: Premium pink acrylic base plate.
- Prosthetic Teeth Selection: High-density, multi-layered Yamahachi Acrylic Teeth.
Step 1: Processing the Upper Flexible Denture
The fabrication sequence began with the maxillary arch reconstruction. First, our lab technicians surveyed the master models to determine the optimal path of insertion for the missing molar zones (16, 17, and 27).
To fulfill the clinician’s aesthetic requirement, we selected a premium thermo-plastic nylon material. As a result, the upper flexible denture provides a highly natural, metal-free appearance that blends seamlessly with the oral mucosa. However, ensuring retention without visible metal wires requires advanced artistic design. To combat this, we crafted custom tissue-colored flexible clasps to secure snugly onto teeth 15 and 26. Consequently, the patient receives maximum retentive stability without sacrificing their smile line.

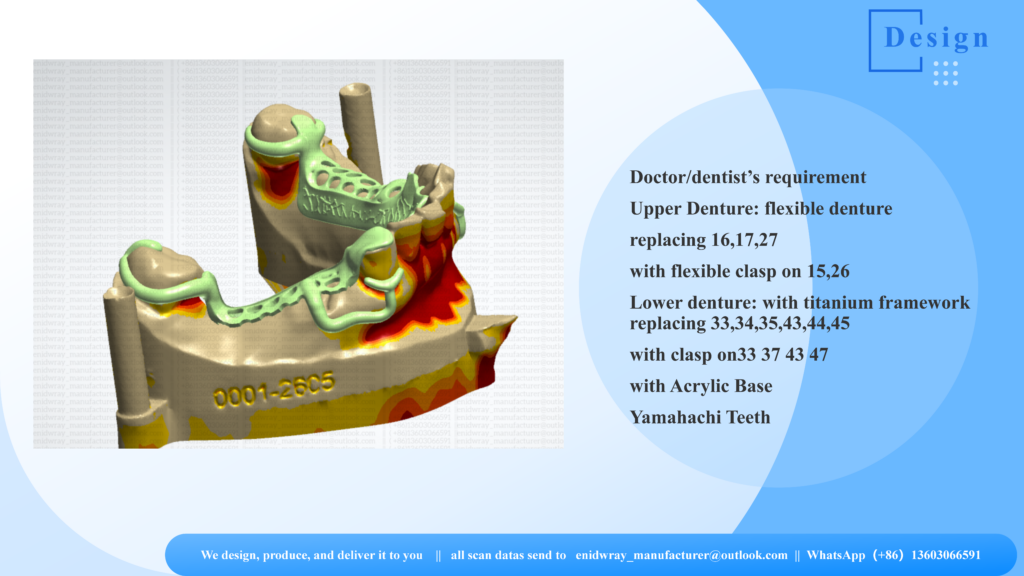

Step 2: Casting the Lower Titanium Framework
Reconstructing the mandibular arch required a vastly different mechanical approach because the bilateral free-end extensions (missing 33-35 and 43-45) face intense chewing forces. Nevertheless, achieving zero-adjustment seating with a lower titanium framework requires absolute precision during the initial CAD/CAM block-out phase.
In accordance with professional dental metallurgy standards, our technicians cast a high-purity medical-grade titanium framework. Specifically, titanium was selected because it is 40% lighter than traditional cobalt-chrome, yet it offers incredible structural stiffness.
- For instance, we engineered custom-milled supportive clasps directly onto anchoring teeth 33, 37, 43, and 47.
- In addition, these circumferential clasps distribute vertical occlusal forces evenly down the long axes of the remaining natural teeth.
- Finally, we carefully bonded a premium pink acrylic base to the mesh areas of the titanium framework to mimic natural soft tissues.

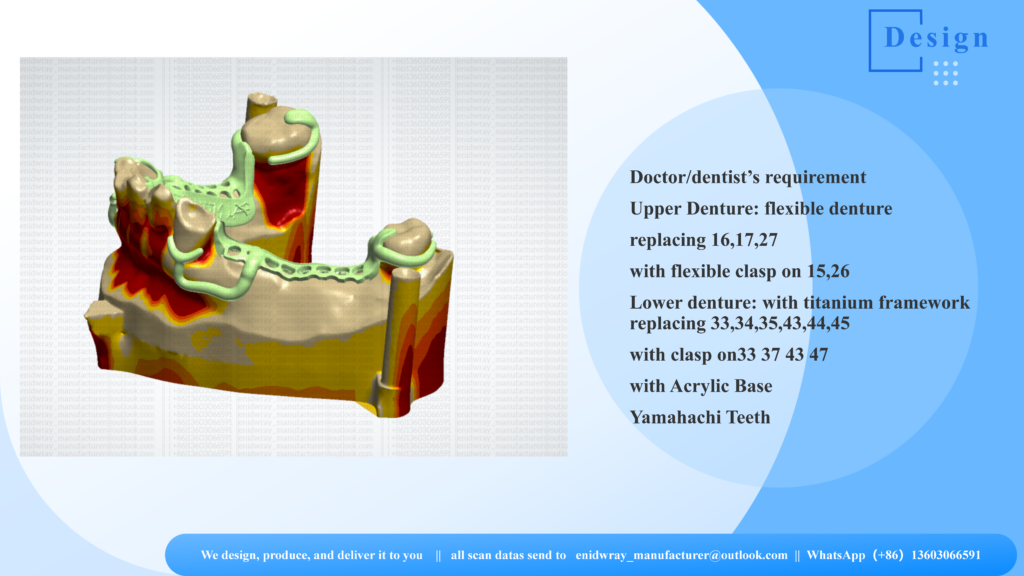

Step 3: Aligning Yamahachi Teeth onto the Titanium Framework
Once the lower metal skeleton passed structural quality checks, both arches were mounted securely onto a semi-adjustable articulator. This phase allows us to replicate the patient’s unique eccentric jaw movements.
Following the articulation process, our ceramists meticulously arranged the premium Yamahachi Dental teeth. Specifically, our quality control inspectors verified three critical parameters prior to final acrylization:
- Perfect Interproximal Contacts: This prevents unwanted shifting and localized food impaction.
- Accurate Clasp Passive Seating: Ensuring the clasps on both the upper nylon base and the lower titanium framework engage the teeth comfortably.
- Balanced Functional Occlusion: As a result of this precise set-up, we eliminated all destructive chewing interferences, guaranteeing immediate patient satisfaction.
The 3Dova Advantage: Engineering Superior Titanium Framework Restorations
When dental practices partner with 3Dova for multi-material rehabilitation cases, they receive more than a basic pair of partial plates. Instead, they gain an engineered, predictable clinical solution. By combining advanced technologies like a cast titanium framework with premium components like Yamahachi teeth, we consistently deliver world-class dental solutions.

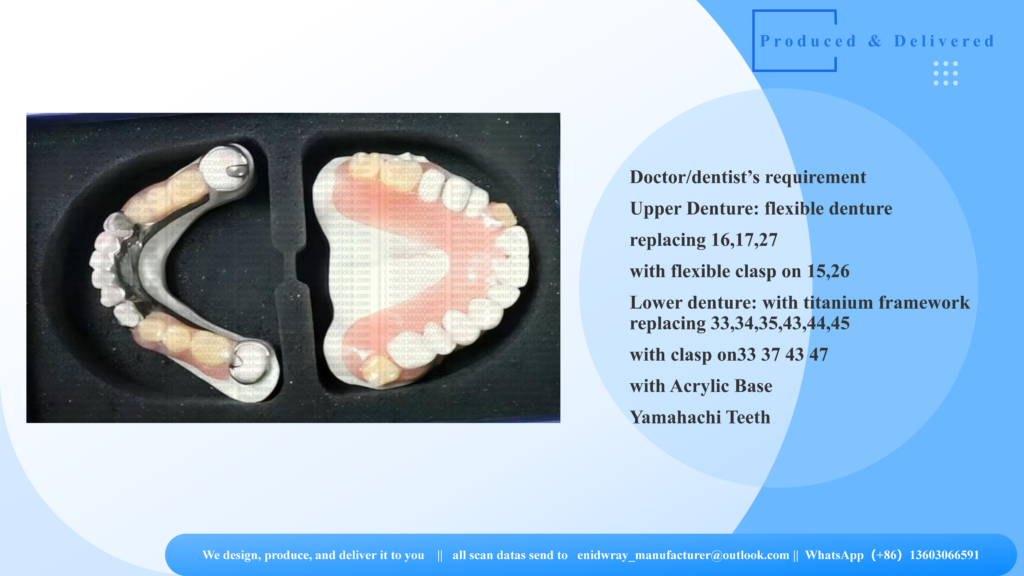

Ultimately, the outcome of this intricate combination case was a beautifully aesthetic upper arch and a structurally flawless lower arch. Therefore, the prescribing doctor was able to deliver the completed titanium framework assembly and flexible denture quickly, comfortably, and confidently.
Are you ready to elevate your removable prosthodontics success?
Partner with 3Dova for your next premium combination case. Contact our digital laboratory department today to submit your digital scans or physical impressions. → order@3dova.com
