Balancing Comfort and Strength: A Combination Upper Acrylic Denture and Lower Cobalt Chrome Framework Case Study
Fabricating a durable removable partial denture requires a precise blend of digital precision and clinical dental engineering. Today, clinicians demand predictable dental restorations that minimize chairside adjustments and ensure long-term patient comfort. According to clinical restorative guidelines published by the American College of Prosthodontists (ACP), selecting the correct material combination is essential to managing biomechanical forces in missing dentition.
Recently, our lab team at 3Dova successfully executed a highly detailed prescription that beautifully demonstrates this mechanical balance. Therefore, we want to share this clinical case study to demonstrate how our advanced workflows turned a specific doctor’s requirements into an outstanding reality.

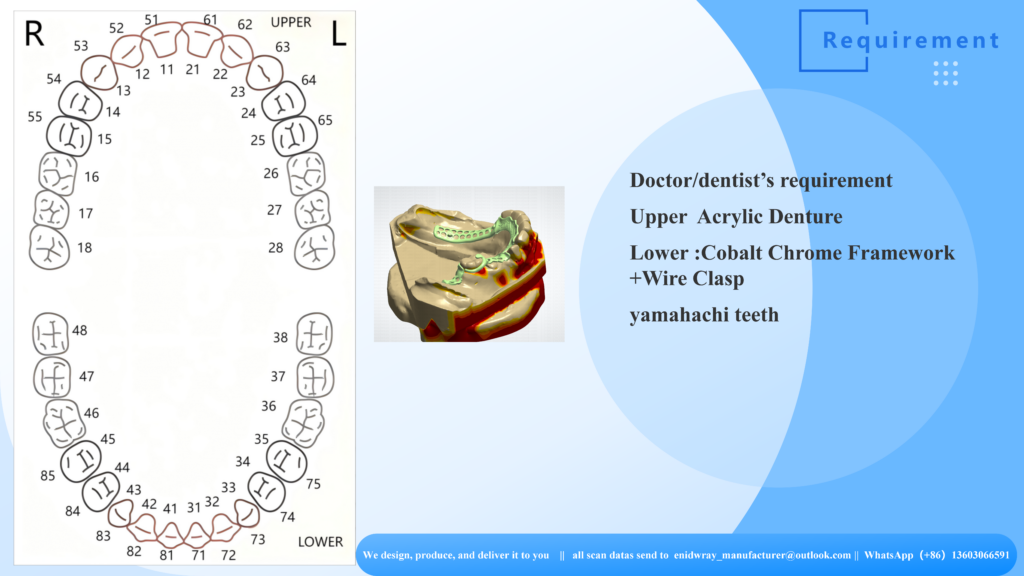

The Prescription Requirement
Upper Arch: Complete Acrylic Denture (Tissue-Supported)
Lower Arch: Removable Partial Denture with a Cobalt Chrome Framework and Wrought Wire Clasps
Prosthetic Teeth: Premium Yamahachi Acrylic Teeth
Primary Objective: Maximum structural stability for the lower jaw, combined with lightweight, aesthetic adaptation for the upper arch
Step 1: Processing the Upper Component of the Removable Partial Denture
The fabrication process began with a thorough analysis of the maxillary stone models. First, our technicians mapped out the stress-bearing areas. This step ensures the upper acrylic denture achieves optimal atmospheric retention and a complete peripheral seal.
To ensure superior aesthetics, we utilized premium polymethyl methacrylate (PMMA) acrylic base materials. As a result, the finished upper prosthesis benefits from a highly stable, bio-compatible base that resists discoloration. However, an acrylic base on its own relies heavily on the quality of the prosthetic teeth for long-term wear resistance. To combat this, we integrated premium Yamahachi Dental acrylic teeth. Consequently, the patient received an upper denture with lifelike multi-layered translucency and exceptional resistance to occlusal wear.

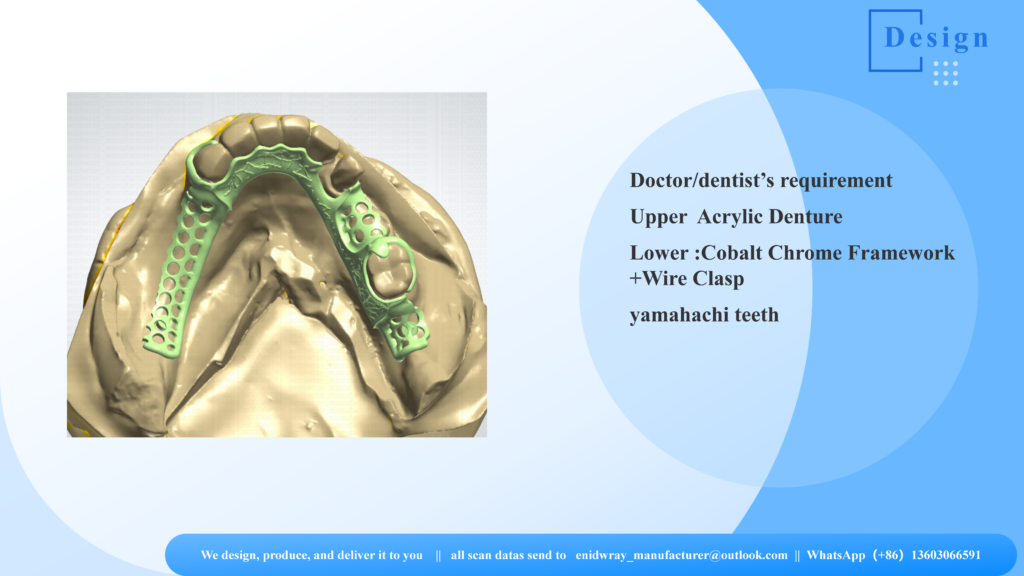

Step 2: Customizing the Cobalt Chrome Framework for the Removable Partial Denture
Fabricating the mandibular prosthesis required a completely different structural approach due to remaining natural teeth and severe load-bearing demands. Nevertheless, achieving zero-adjustment seating with a lower removable partial denture requires absolute precision during the initial surveying and block-out phases.
In accordance with strict laboratory standards regarding metal alloys, our dental technicians designed a high-purity medical-grade cobalt chrome framework. Specifically, this material was chosen for its outstanding tensile strength and lightweight properties. This alloy allows for an incredibly thin and comfortable major connector.
- For instance, we incorporated custom-designed wrought wire clasps onto the anchor premolars.
- In addition, these wire clasps provide excellent retention while minimizing lateral stress on the patient’s natural abutment teeth.
- Finally, we hand-waxed, cast, and high-shine polished the metal framework to ensure a completely smooth surface that prevents plaque accumulation.
Step 3: Setting Yamahachi Teeth onto the Removable Partial Denture

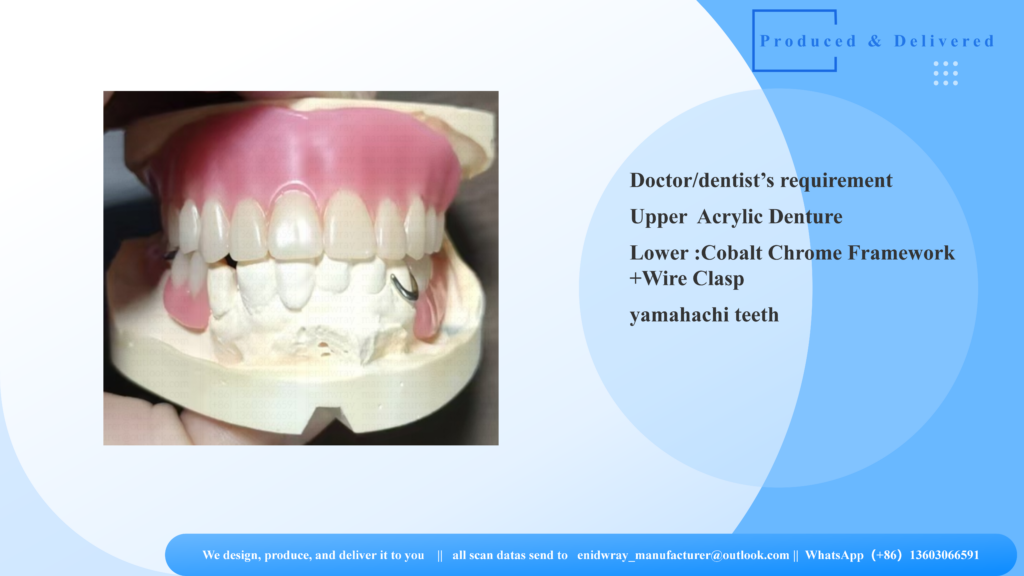

Once the lower framework passed structural quality control, both arches were mounted on an articulator. This process allows us to replicate the patient’s exact bite alignment.
Following the articulation process, our ceramists meticulously arranged the Yamahachi teeth to establish proper canine guidance and balanced occlusion. Specifically, our quality control team verified the following critical factors before final curing:
- Flawless Interproximal Contacts: This is vital to prevent food impaction and ensure tissue health.
- Accurate Clasp Adaptability: Ensuring the wire clasps on the lower removable partial denture snap perfectly into place without causing patient discomfort.
- Occlusal Harmony: As a result of this precise setup, we eliminated premature contacts, ensuring long-term satisfaction for both the clinician and the patient.
The 3Dova Advantage: Elevating Removable Prosthetics
When dentists partner with 3Dova for complex combination cases, they aren’t just ordering a standard dental appliance. Instead, they are investing in a highly predictable, engineered restoration. By combining advanced premium components like a cast Cobalt Chrome Framework with world-class Yamahachi teeth, we consistently deliver superior results that stand the test of time.

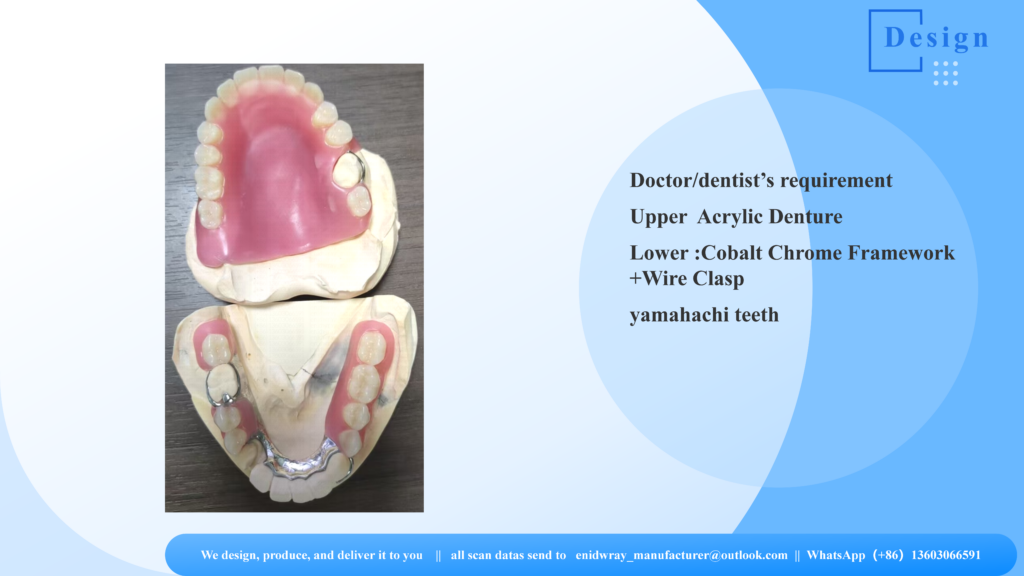

Ultimately, the outcome of this combination case was an exceptionally durable lower arch and a beautifully natural upper arch delivered right on time. Therefore, the clinician was able to seat both the upper denture and lower Cobalt Chrome Framework quickly, comfortably, and confidently.
